Flt No. TP8901

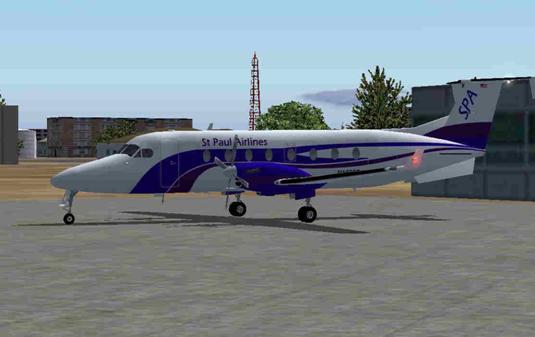

Aircraft: BE-1900
Location:
Weather: your choice
Procedure: LOC BC
approach with autopilot at Hutchinson ,
KS

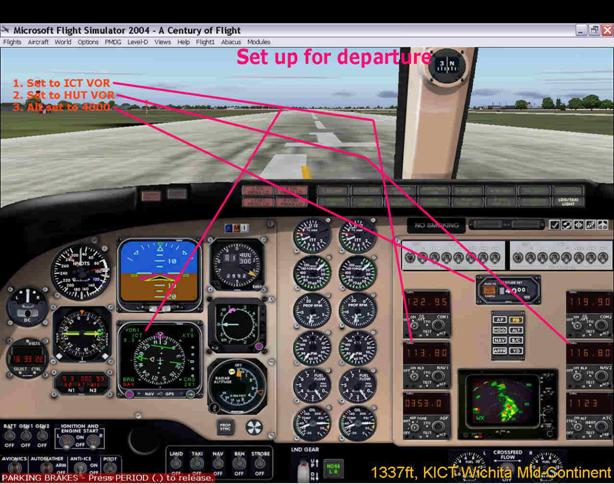

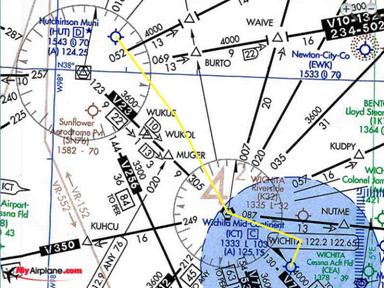

· Depart KICT on runway 01L, turn left to HDG 290 and proceed direct to ICT VOR (113.8). Climb to 4000 feet.
· Depart ICT VOR on 330 Radial

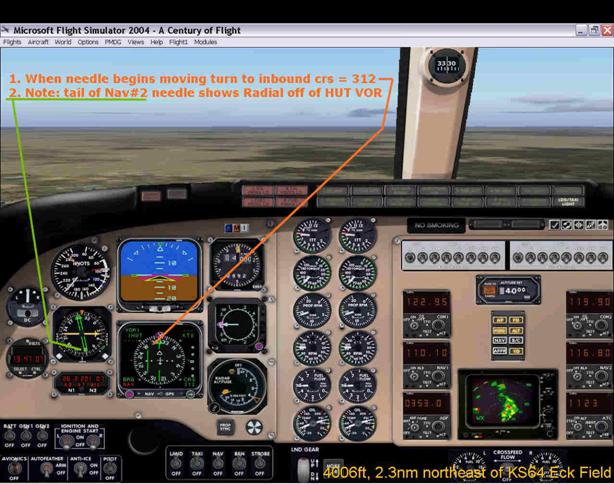

· When established on the ICT 330R, maintain your heading and tune NAV#1 to the KHUT LOC BC (110.1). Intercept the BC.
· When established on the LOC BC, descend to 3000 feet.
(REMEMBER THE "BC" NEEDLE HAS REVERSE SENSING)

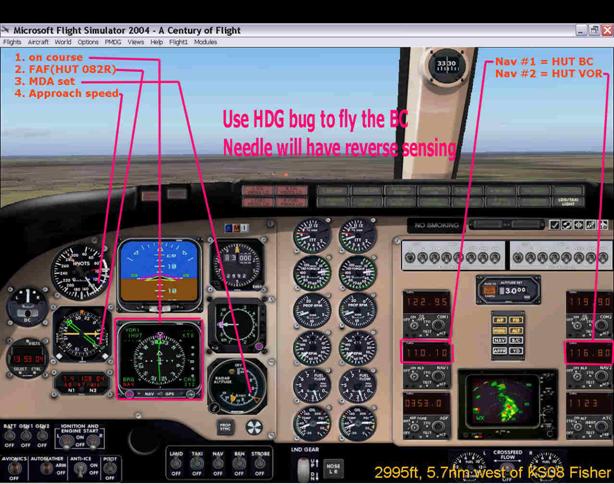

· Use HDG bug to remain on LOC ( rather than the BC mode on the AP/FD)
· Select flaps to position 1, and slow to approach speed.
· At FAF (the HUT VOR 082R - the tail of NAV#2) lower landing gear, and start a descent of about 650 fpm (this is for 130 kts).
· With visibility set at 3 miles, you should see the RWY at 2.8 miles out.
· When RWY is in sight, select final flaps; final landing check, and follow the VASI
Welcome To Hutchinson
REVERSE SENSING = Turn away from the needle to re-center on a BC approach.
Self-critique
After you land, and before you shut down the FlightSim program, hit the "Alt" key then select "Options" and then select "Flight Analysis" to see how you did. It will show the flight path you flew.
